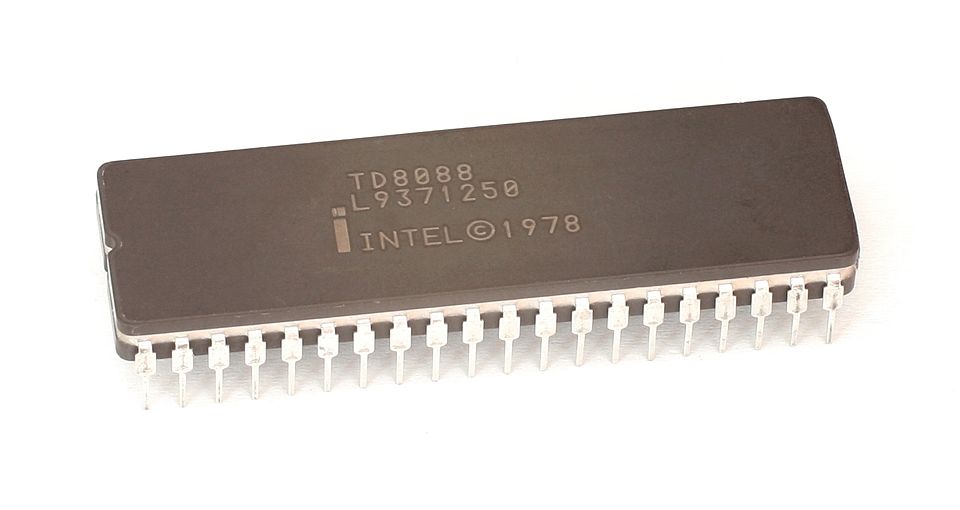

The Intel 8088 is a historically significant microprocessor. Released in 1979, it’s arguably the chip that powered the original IBM PC and, consequently, launched the personal computer revolution as we know it. Here’s a comprehensive look at its architecture, features, history, and legacy:
1. Historical Context & Why it was Chosen for the IBM PC
- Early Microprocessors: Before the 8088, microprocessors like the Intel 4004 and 8080 existed, but were limited in power and capabilities.
- The IBM PC Project (1980-1981): IBM needed a microprocessor for their new personal computer. They initially considered the Motorola 68000, which was more powerful.
- Why the 8088 Won: Several factors led IBM to choose the 8088 over the 68000:
- Cost: The 8088 was significantly cheaper.
- Second Source: Intel had a second source (AMD) that could manufacture the chip, ensuring supply. Motorola didn’t have a comparable second source at the time.
- Existing Support: Intel already had a network of support and development tools.
- IBM’s Strategy: IBM wanted to encourage third-party development, and the 8088’s simpler architecture made it easier for developers to create software.
- The 8086 Connection: The 8088 was closely related to the Intel 8086. The key difference was the data bus width (explained below).
2. Architecture & Key Features
- 16-bit Processor: The 8088 is a 16-bit microprocessor, meaning it can process data in 16-bit chunks. This was a significant step up from the 8-bit processors of the time.
- External 8-bit Data Bus: This is the defining characteristic of the 8088. While internally it’s a 16-bit processor, it communicates with memory and peripherals using an 8-bit data bus. This was a compromise to reduce cost and complexity. The 8086 had a 16-bit data bus.
- 20-bit Address Bus: The 8088 could address 1MB (2^20 bytes) of memory. This was a huge amount for the time and allowed for more complex software.
- Segmented Memory Model: Because the 8088 couldn’t directly address 1MB of memory with a 16-bit address, it used a segmented memory model. Memory was divided into 64KB segments, and programs used segment registers (CS, DS, ES, SS) to point to different segments. This was a complex but necessary workaround.
- Instruction Set: The 8088 used a Complex Instruction Set Computing (CISC) architecture. This meant it had a large and varied set of instructions, some of which were quite complex.
- Registers: The 8088 had a set of registers used for storing data and addresses:
- General Purpose Registers (AX, BX, CX, DX): Used for arithmetic, logical operations, and data storage.
- Segment Registers (CS, DS, ES, SS): Used to define memory segments.
- Pointer and Index Registers (SP, BP, SI, DI): Used for addressing memory and manipulating data.
- Instruction Pointer (IP): Points to the next instruction to be executed.
- Flag Register: Contains status flags that indicate the results of operations.
- Clock Speed: The original IBM PC used an 8088 running at 4.77 MHz. Later versions ran at slightly higher speeds (e.g., 8 MHz).
3. Technical Specifications (Summary)
| Feature | Specification |
|---|---|
| Architecture | CISC |
| Data Bus Width | 8-bit |
| Address Bus Width | 20-bit |
| Addressable Memory | 1 MB |
| Word Size | 16-bit |
| Clock Speed | 4.77 MHz, 8 MHz |
| Transistor Count | 29,000 |
| Manufacturing Process | 3 µm NMOS |
4. Programming the 8088
- Assembly Language: The 8088 was commonly programmed in assembly language, which allowed programmers to directly control the hardware.
- High-Level Languages: Compilers were developed for languages like BASIC, Pascal, and C, allowing programmers to write more portable and easier-to-maintain code.
- BIOS & DOS: The Basic Input/Output System (BIOS) provided a low-level interface to the hardware, and the Disk Operating System (DOS) provided a higher-level environment for running applications. These were crucial for the success of the IBM PC.
5. Successors & Evolution
- Intel 8086: The 8086 was the 16-bit sibling of the 8088, with a 16-bit data bus. It was faster but more expensive.
- Intel 80286: Introduced protected mode, allowing for more memory management and multitasking.
- Intel 80386: A 32-bit processor that brought significant performance improvements and a more robust memory management system.
- Intel 80486: Integrated a math coprocessor and further improved performance.
- Pentium Series: Continued the evolution of the x86 architecture, leading to the powerful processors we use today.
6. Legacy & Impact
- The PC Standard: The 8088 established the x86 architecture as the dominant standard for personal computers. Even today, most desktop and laptop computers use x86-compatible processors (Intel and AMD).
- Software Ecosystem: The 8088’s architecture fostered the development of a vast software ecosystem that continues to thrive.
- Innovation: The 8088’s success spurred further innovation in microprocessor technology, leading to the powerful processors we have today.
- Retro Computing: The 8088 remains popular among retro computing enthusiasts who enjoy programming and running classic software on original hardware or emulators.
Resources for Further Exploration
- Wikipedia: https://en.wikipedia.org/wiki/Intel_8088
- CPU World: https://www.cpu-world.com/CPUs/8088/index.html
- YouTube – Breadboarding Labs’ 8088 Computer Build: https://www.youtube.com/playlist?list=PL0HI91x0gPoGUtu3rUd1dSInTlIL2wk2p (A fantastic hands-on build of an 8088-based computer)
In conclusion, the Intel 8088 wasn’t the most powerful processor of its time, but its combination of cost, availability, and a relatively simple architecture made it the perfect choice for the IBM PC. It’s a chip that fundamentally changed the world, and its legacy continues to shape the computing landscape today.
